Loveless bolt

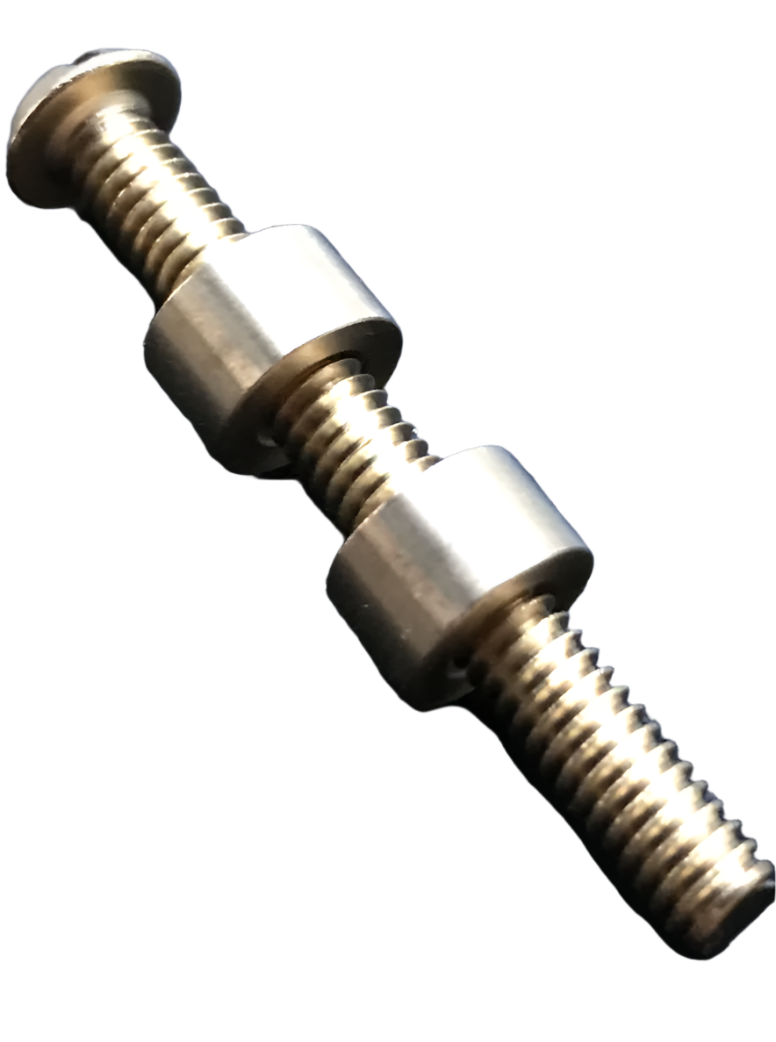

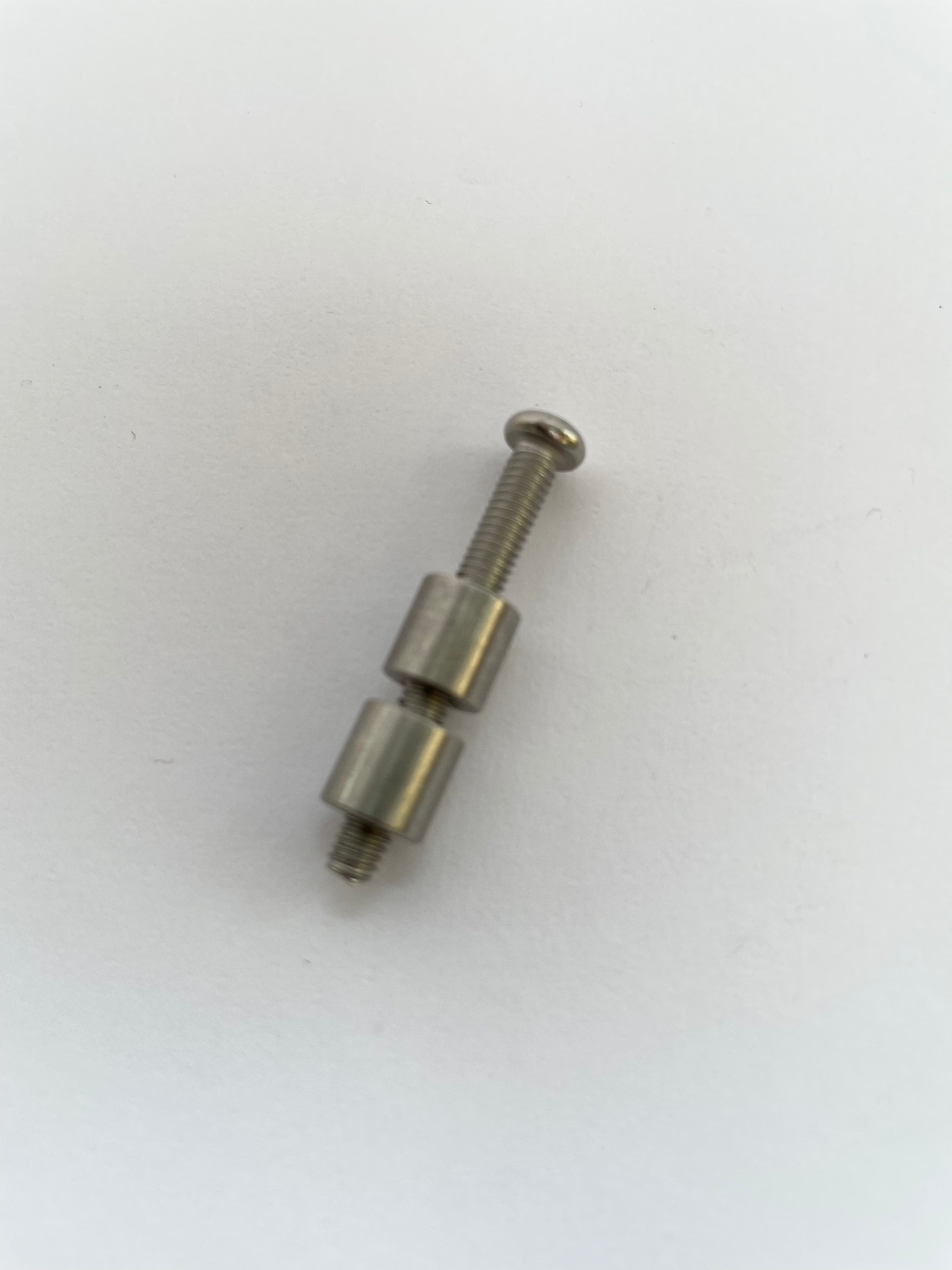

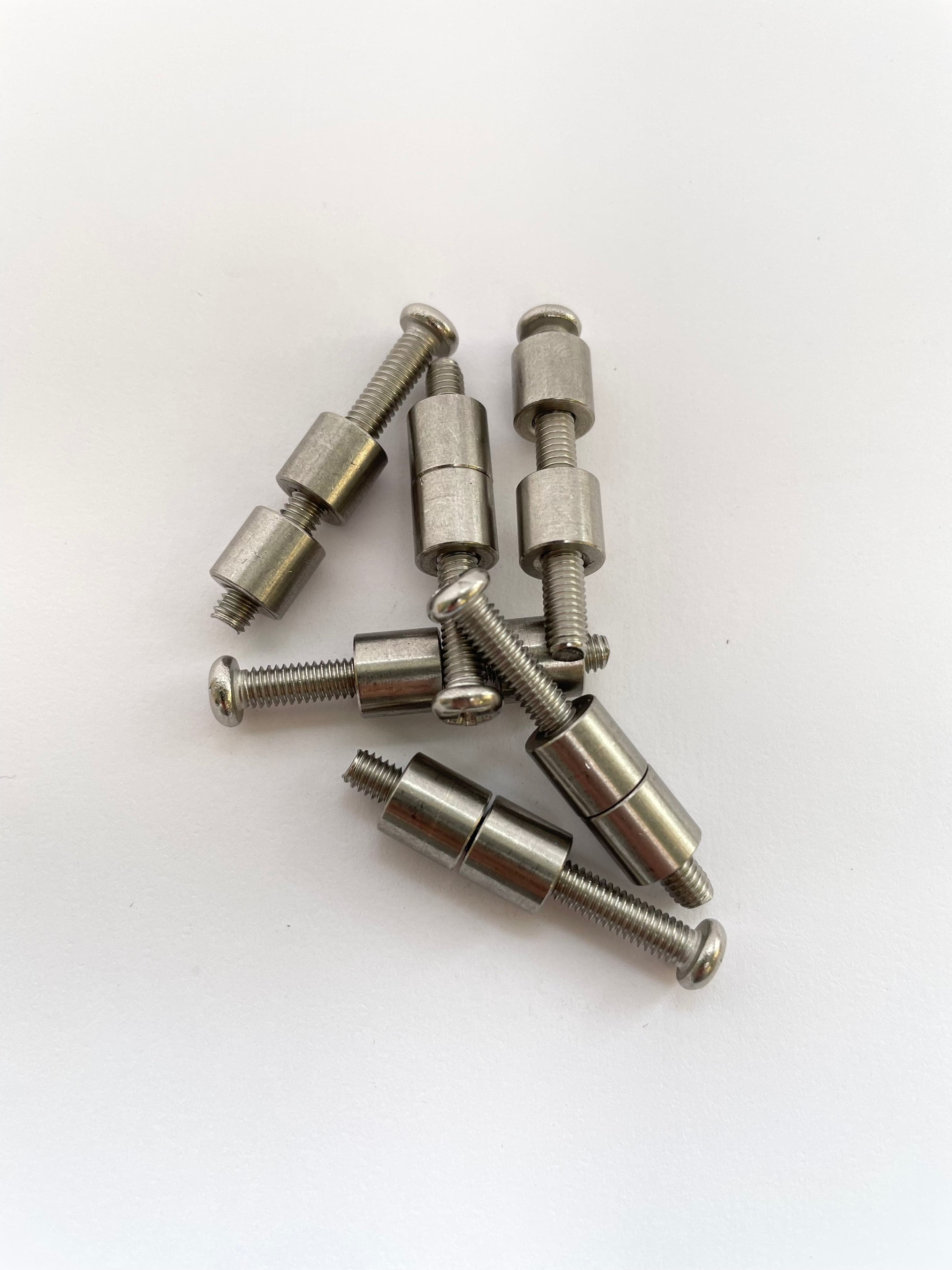

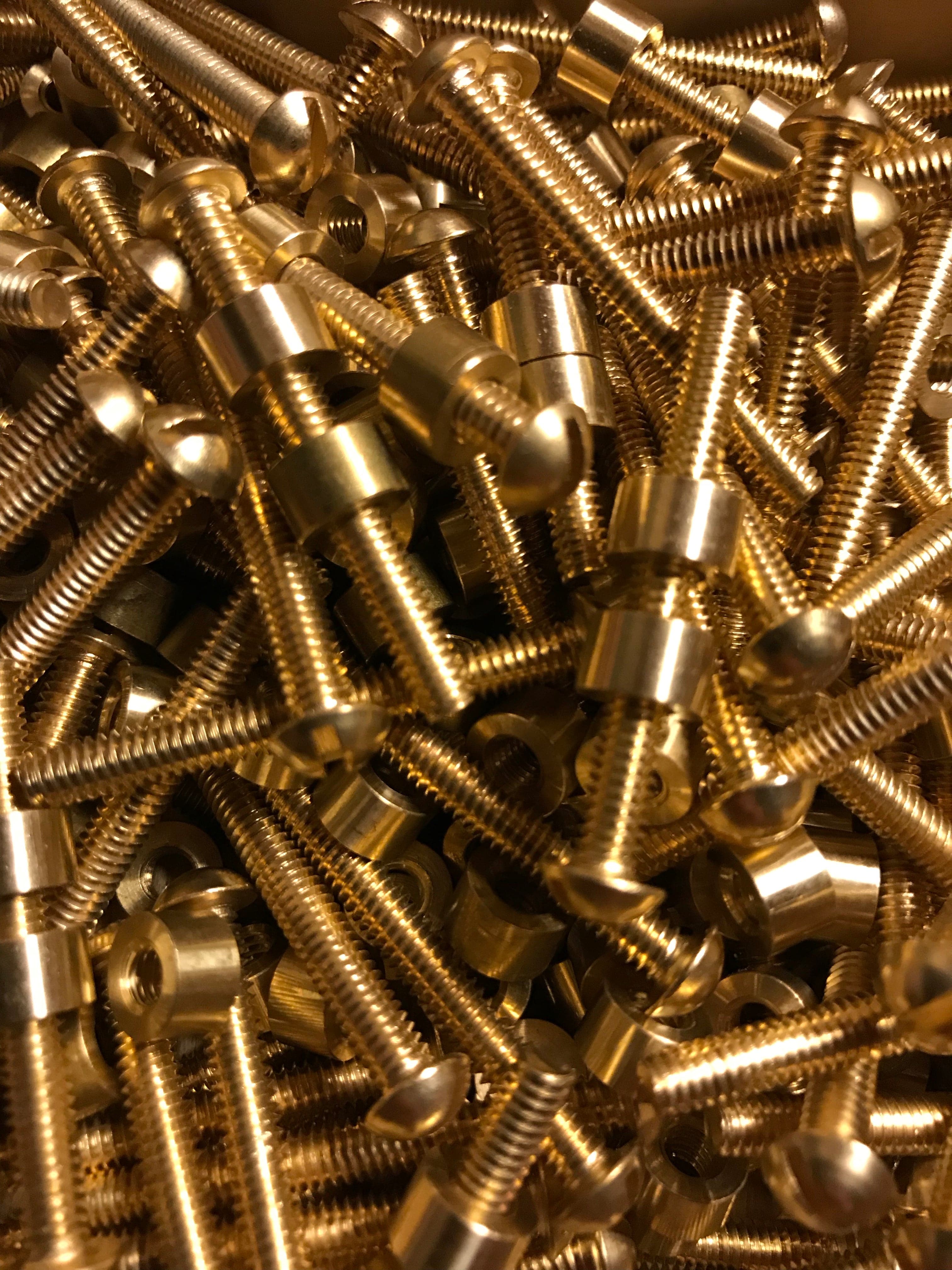

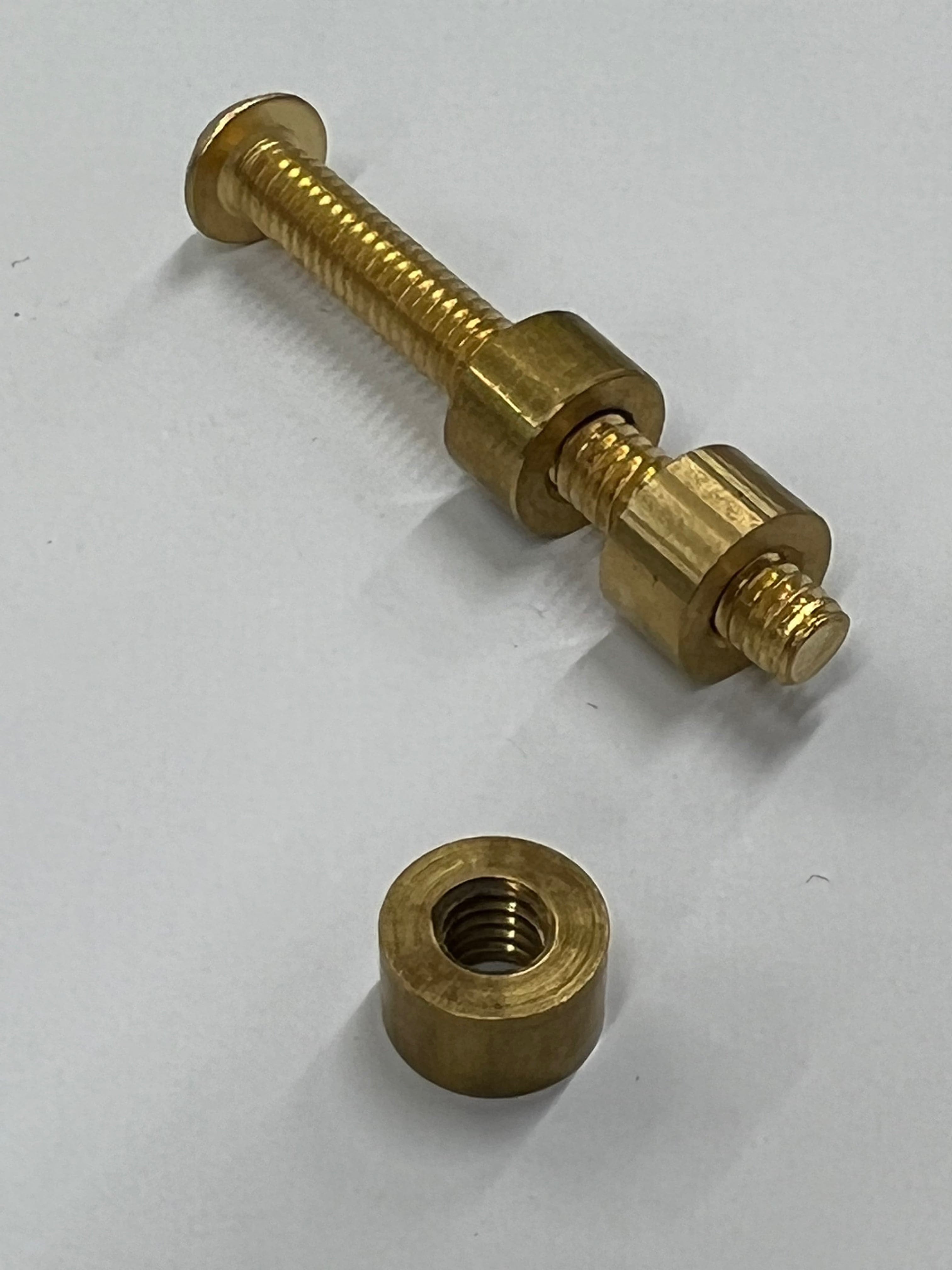

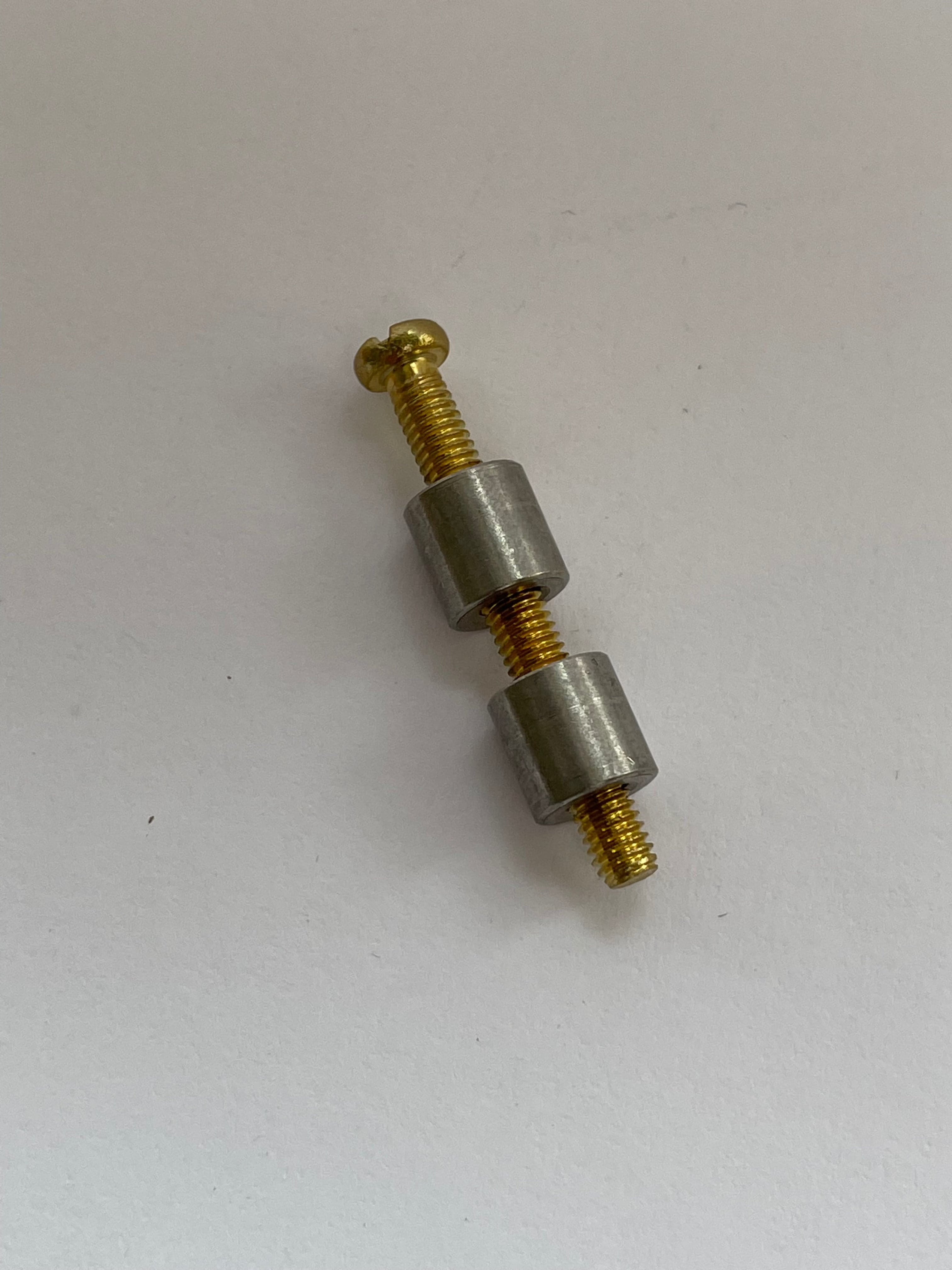

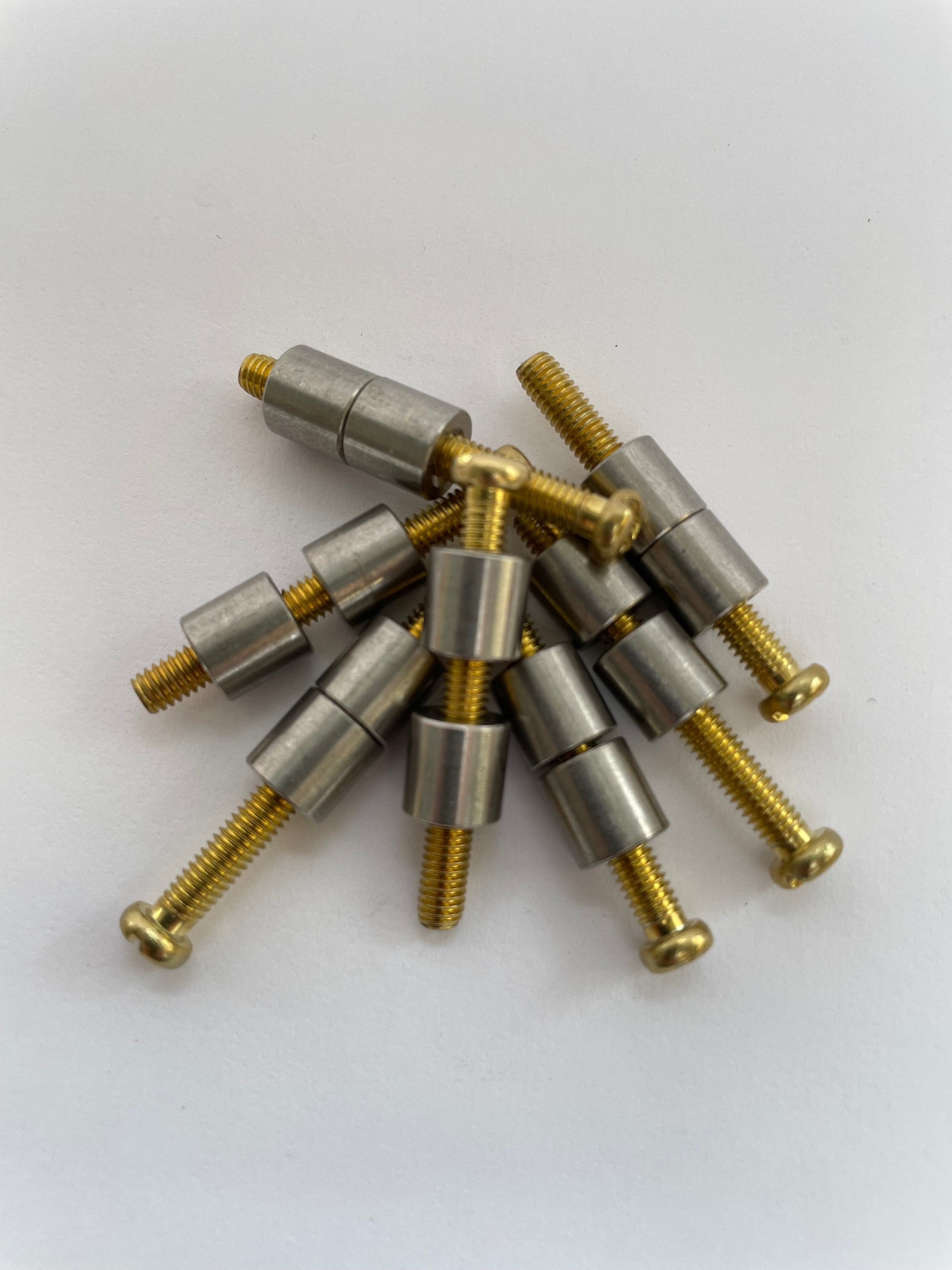

The Loveless bolt, an ingenious solution for attaching grip plates to full tang blades. A shaft attachment system consisting of an M4 screw and two round nuts.

How to use a Lovelessbolt

Drill a 4mm hole for the bolt, and drill part way through the shaft plate with an 8mm drill bit so that the nut can seat in the shaft. Apply glue to the surfaces to be glued and tighten. Once the glue has hardened, sand the bolt flush with the shaft surface.

Specifications

Bolt diameter: 4mm

Nut diameter: 8mm

Bolt total length including head: 37mm

Max thickness between nuts in assembly: 20mm

Not quite what you see here? Check out our Corby bolts. Also see round rods for shafts, and mosaic pins and motif pins.
